Premium Rim Guard

Overview

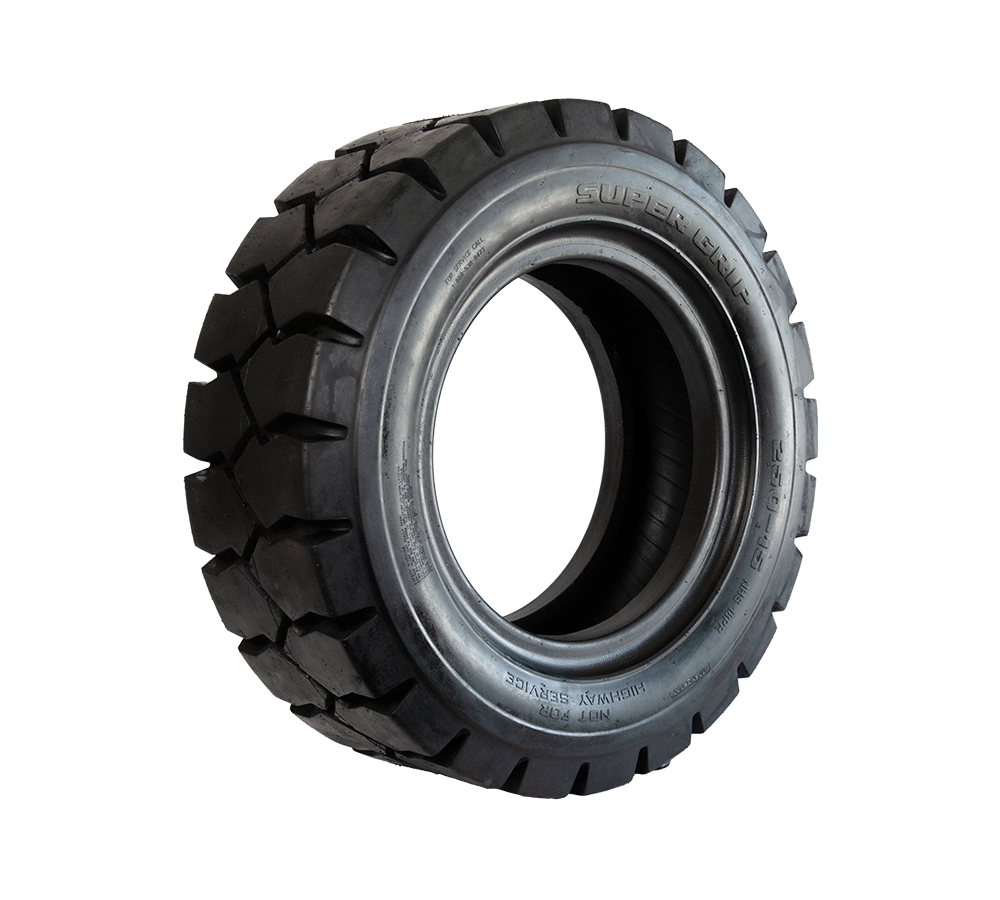

A premium pneumatic tire for forklifts, container handlers, and reach stackers, built on an E-4 tube-and-flap assembly for heavy material-handling and port duty. Its reinforced rim guard adds lateral strength and protects the wheel, extending tire life and cutting downtime.

Size Specifications

For Forklifts, Container Handlers, & Reach Stackers

Item Number Tire Size Ply O.D. Section Width Tread Width Tread Depth PSI Load Limit 10mph
05008-FL-PRM 500-8 10 18.4 5.5 4.4 30/32 150 2410
06009-FL-PRM 600-9 12 20.3 6.5 5.5 32/32 150 4130
06909-FL-PRM 690-9 12 21.5 6.5 5.5 37/32 150 4130
065010-FL-PRM 650-10 12 23.5 7.1 6.3 42/32 140 4740
070012-FL-PRM 700-12 14 26.9 8.1 6.8 45/32 145 6535
070015-FL-PRM 700-15 16 28.2 7.6 7 36/32 145 7495
028915-FL-PRM 28x9-15 16 28.5 9.3 8.3 38/32 140 7530
025015-FL-PRM 250-15 20 29.5 9.4 8.6 39/32 150 10100
075015-FL-PRM 750-15 16 30.1 8.3 6.9 36/32 150 10970
075016-FL-PRM 750-16 16 31.5 8.4 7.2 36/32 150 11015
082515-FL-PRM 825-15 16 33.7 9.1 7.7 41/32 150 9200
082515-FL-PRM 825-15 18 33.7 9.1 7.7 41/32 150 9200
030015-FL-PRM 300-15 22 33 11.4 10.2 42/32 150 15775
1000218-FL-PRM 1000-20 18 43.3 11.9 10.4 56/32 130 16140

Port Use

Item Number Tire Size Ply O.D. Section Width Tread Width Tread Depth PSI Load Limit 10mph
1200224-FL-PRM 1200-20 24 46.2 13.2 11.5 64/32 145 22930
1200228-FL-PRM 1200-20 28 46.2 13.2 11.5 64/32 145 22930
12002424-FL-PRM 1200-24 24 51.2 13.1 11 65/32 130 22100
14002428-FL-PRM 1400-24 28 55.8 15.2 13.8 73/32 130 30000
14002528-FL-PRM 1400-25 28 56.1 15.2 13.8 73/32 130 33020
16002528-FL-PRM 1600-25 28 61.0 17 15.3 80/32 145 45000
16002532-FL-PRM 1600-25 32 61.0 17 15.3 80/32 145 45000
18002540-FL-PRM 1800-25 40 65.0 20.7 18.4 87/32 150 56600

Premium Rim Guard

Extra rubber on the sidewall and bead area protects your wheel from cuts, scrapes, and scuffs.
